As its whiskers flitter, the mouse’s mind sparks with exercise. A tiny implant information {the electrical} chatter and beams it to a close-by pc.
Smaller than a grain of salt, the implant is powered by and transmits information with mild. In contrast to most implants, it strikes with the mind to cut back scarring. Dubbed MOTE, the machine reliably captured electrical indicators for a yr in mice—about half their lifespan—with out apparent harm.
“The long-term recording of neural exercise may very well be used to grasp advanced behaviors and problems,” Sunwoo Lee at Nanyang Technological College, Alyosha Molnar at Cornell College, and group wrote in a latest paper describing the implant.
Penny for Your Ideas
Mind implants are serving to decode—and restore—the neural indicators behind our ideas, reminiscences, actions, and habits.
Most units depend on arrays of microelectrodes inserted into the mind, although some sit on the mind’s floor to reduce harm. From translating neural exercise into computerized speech to restoring motion in individuals with paralysis, these units have already remodeled lives.
However there’s a serious disadvantage. Most implants use wires plugged right into a port embedded in an individual’s cranium to switch indicators, requiring intensive surgical procedure. Implanted electrodes, though small, are like fastened pins inside a wobbly Jell-o block. They’ll’t transfer with mind tissue. Over time, scarring reduces the implants’ effectivity, and the {hardware} triggers irritation.
Scientists have been tackling these roadblocks with intelligent concepts like wi-fi implants that transmit information on radio frequencies, a bit like walkie-talkies. “Neurograin” implants, for instance, report and stimulate the mind wirelessly and transmit information to a skinny electrical patch on the scalp. Different units use ultrasound for energy and to ship indicators to a controller.
However most wi-fi implants are nonetheless cumbersome, “equal to a large fraction of the mouse mind,” wrote the group.
Then there’s the last word enemy: Time. The mind is bathed in fluid for nourishment and waste elimination, however this soupy concoction eats away at electrical elements. Though some strategies can seize neural exercise over many months with a microscope and implanted mild probes, they solely work in genetically engineered mice with glow-in-the-dark neurons.
A sturdy wi-fi implant for residing brains has to date escaped scientists’ grasp.
“Our purpose was to make the machine sufficiently small to reduce that disruption whereas nonetheless capturing mind exercise quicker than imaging techniques, and with out the necessity to genetically modify the neurons for imaging,” Molnar mentioned in a press launch.
Energy of Gentle

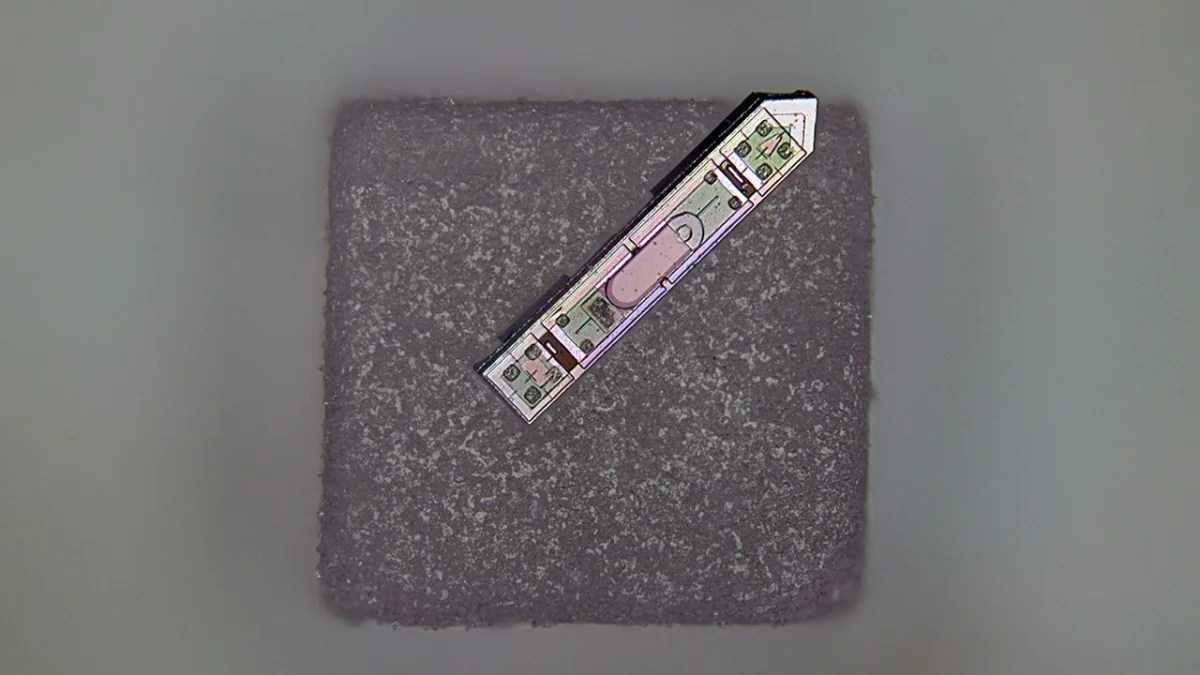

The brand new MOTE machine, smaller than a grain of salt, combines electronics and LEDs for wi-fi recording and communication.
Pink and infrared mild penetrate the scalp, cranium, and mind with minimal distortion, making them helpful vitality sources. The machine has a diode that turns these wavelengths of sunshine into electrical vitality—a bit like these inside photo voltaic panels—to energy the machine. As soon as the implant captures electrical indicators from the mind, it sends them to a pc on quick pulses of sunshine.
Like morse code, the precise timing and period of the pulses replicate neural exercise. This expertise is extensively utilized in satellite tv for pc communication, wrote the group, and requires little or no energy to function.
MOTE’s onboard electronics are like pc chips. Every packs 186 transistors, which kind the premise of three principal circuits. One circuit boosts recorded mind indicators, one other recodes them into mild pulses, and the third drives LEDs for transmission to a pc.
These elements are protected by a customized sheath made by coating the implant one atomic layer at a time. The ultra-thin sheath protects MOTE from the mind’s corrosive setting. Every fabrication step might be performed in parallel, making practically 100 units on the similar time.
“So far as we all know, that is the smallest neural implant that can measure electrical exercise within the mind after which report it out wirelessly,” mentioned Molnar.
Dwell Lengthy and Prosper
In a primary take a look at, the units reliably captured electrical exercise from coronary heart muscle cells in petri dishes, suggesting they labored as supposed.
The group subsequent implanted the machine into a novel a part of the mouse mind. Mice closely rely on their whiskers to navigate the world. These indicators are processed within the barrel cortex. A spread {of electrical} patterns seize sensations and generate twitches in every whisker.
Some mice acquired the implant on high of their brains, as an alternative of penetrating into the fragile tissue. However most had the machine implanted utilizing a nanoinjector. Over the subsequent yr, the machine faithfully transmitted information from the barrel cortex when scientists tickled the mice’s whiskers. It detected exercise from single neurons and neural community exercise related to habits.
MOTE appeared principally innocent. Not one of the mice skilled seizures or different neurological points typically seen in bigger implants. They skittered round and chowed down on meals as common. There was additionally little or no scarring across the implant, even after a yr.
The units aren’t only for decoding mouse brains. They might sooner or later choose up electrical indicators from organoids—so-called mini-brains. Organoids loosely mimic the early phases of mind growth. Though tiny, they’re densely full of a number of forms of mind cells and connections, making it tough for bulkier implants to report indicators with out harm.
Upgraded with higher detection and light-emission {hardware}, MOTEs may theoretically work as much as six millimeters deep within the mind, sufficient to report from the whole mouse mind and in organoids, wrote the group.
They’re nonetheless removed from scientific use, however making implants wi-fi means they’re extra suitable with mind imaging applied sciences, corresponding to fMRI (purposeful magnetic resonance imaging), which may paint a wider image of mind exercise throughout duties. Exterior the mind, MOTE may faucet into the spinal twine, coronary heart, or different tissues and report dynamic motion pictures of their well being.
